Compressors are the heart of any cooling system, as they ensure the necessary pressure and circulation of the refrigerant. This article describes the repair process of a Carrier chiller compressor, model Carlyle 06NA. The repair was required due to significant damage and wear to internal components discovered during inspection.
Identified Issues
Upon opening the compressor, the following problems were found:

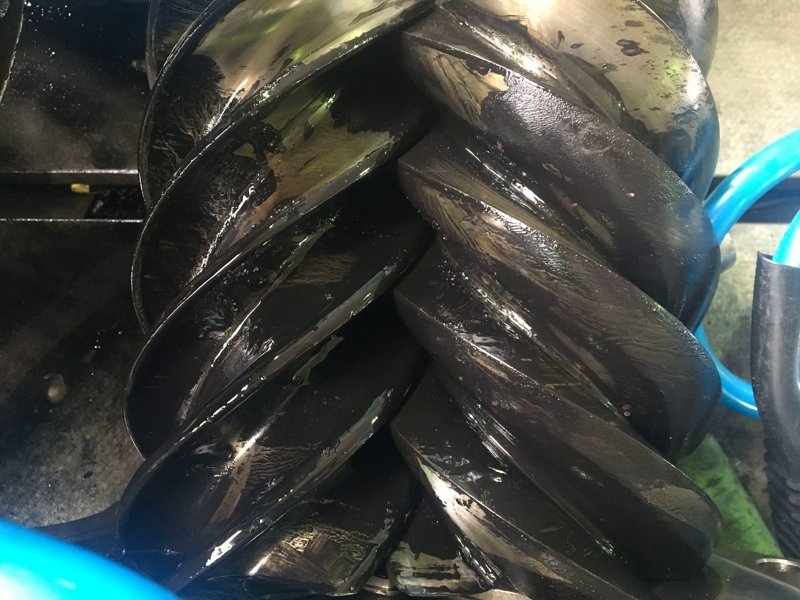

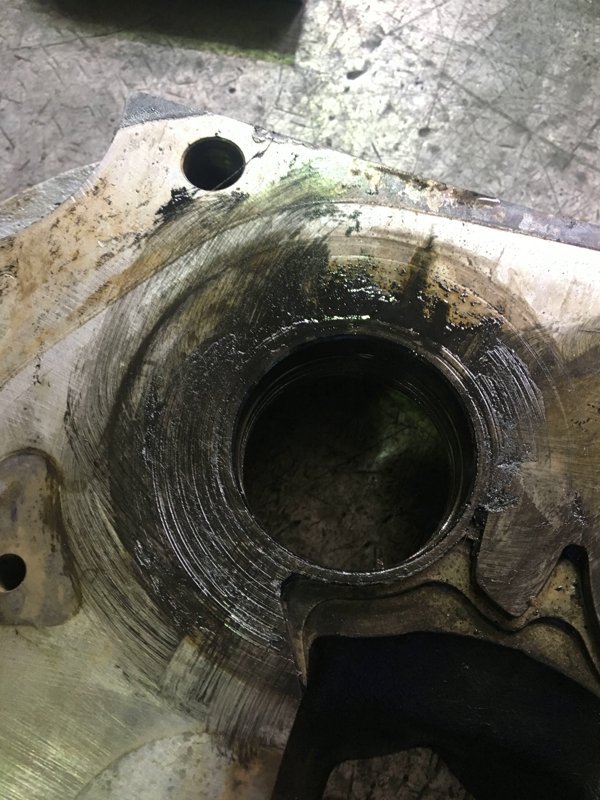

- Scoring on the rotors (screws).
- Severe wear on the bearings and other internal parts.
Repair Process
-

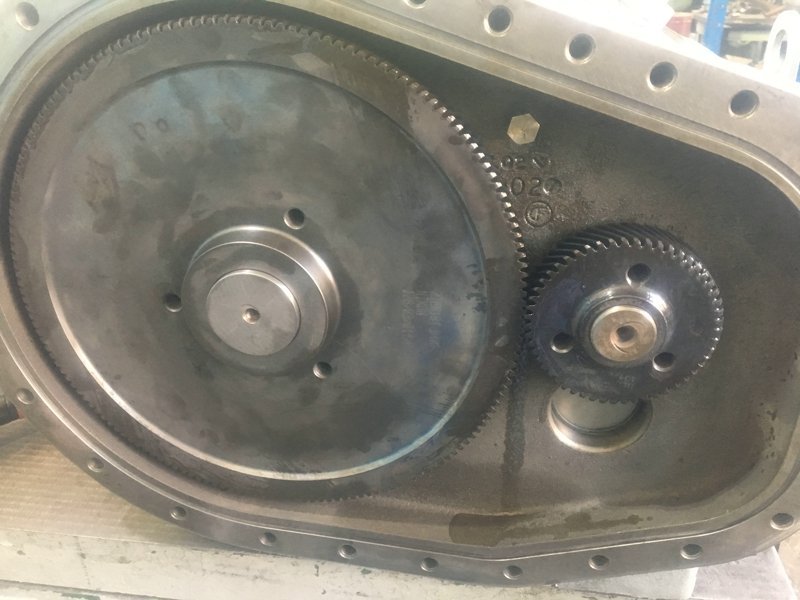

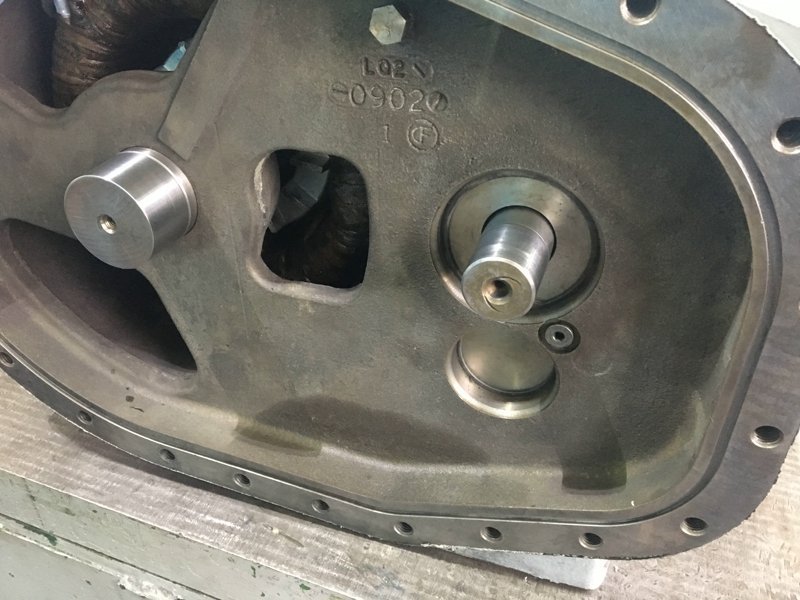

Disassembly and Diagnosis:

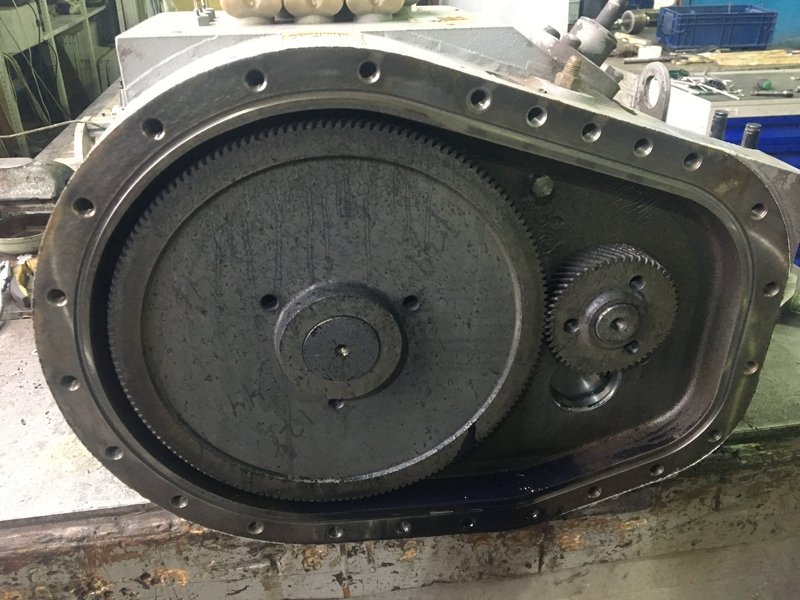

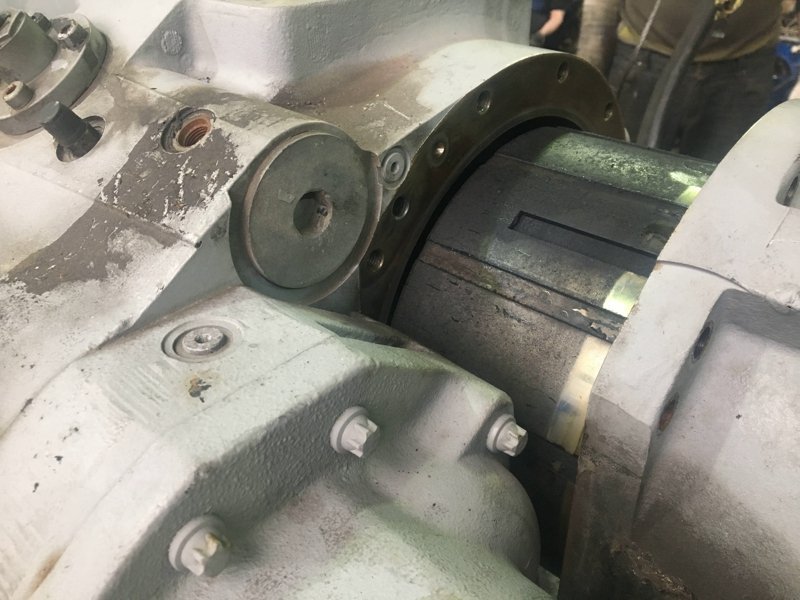

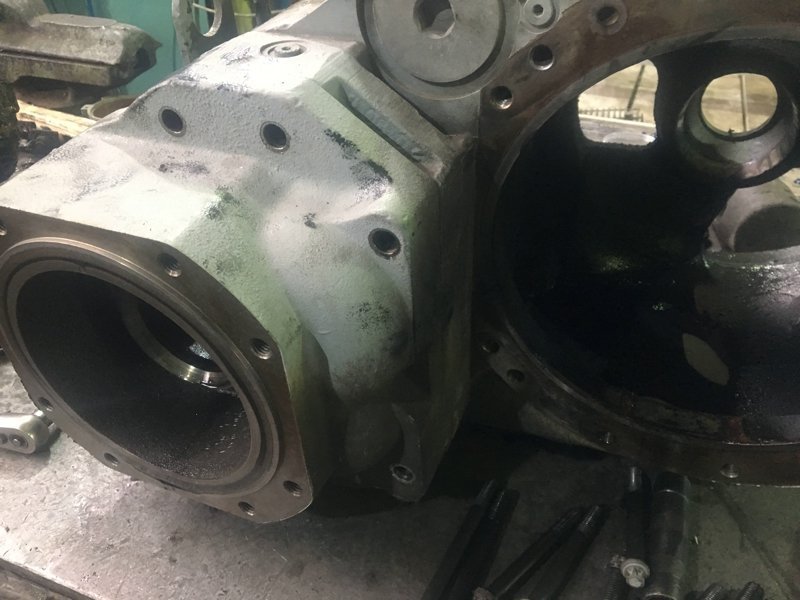

- The compressor was completely disassembled for a detailed inspection of all components.
- The level of wear was assessed, revealing deep scoring on the rotors and critical bearing degradation.
-
Ultrasonic Cleaning:
- All compressor parts were cleaned in an ultrasonic bath to remove contaminants and old oil residues.
- This step ensured thorough cleaning, which is essential for high-quality repair.
-

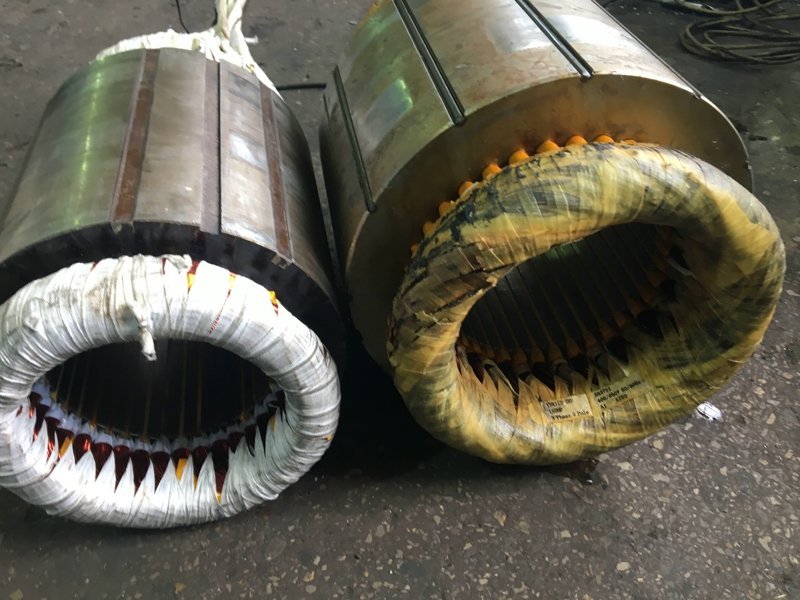

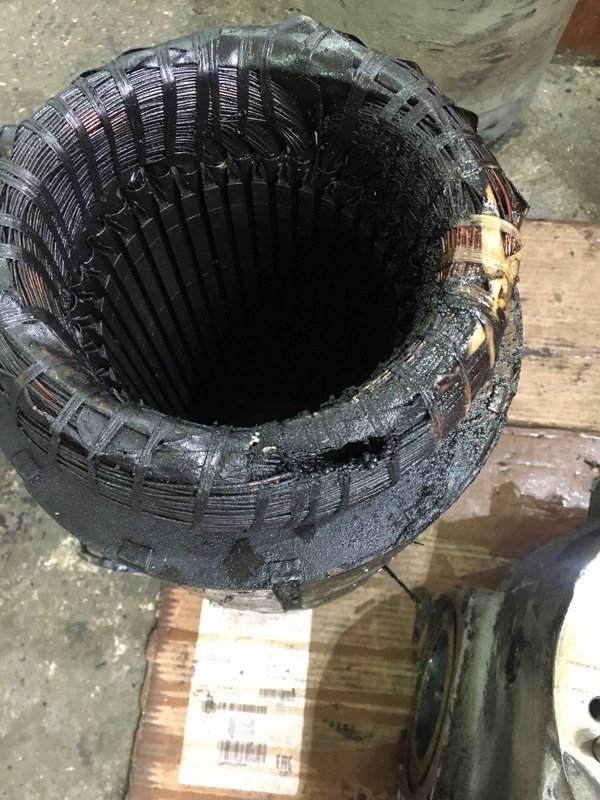

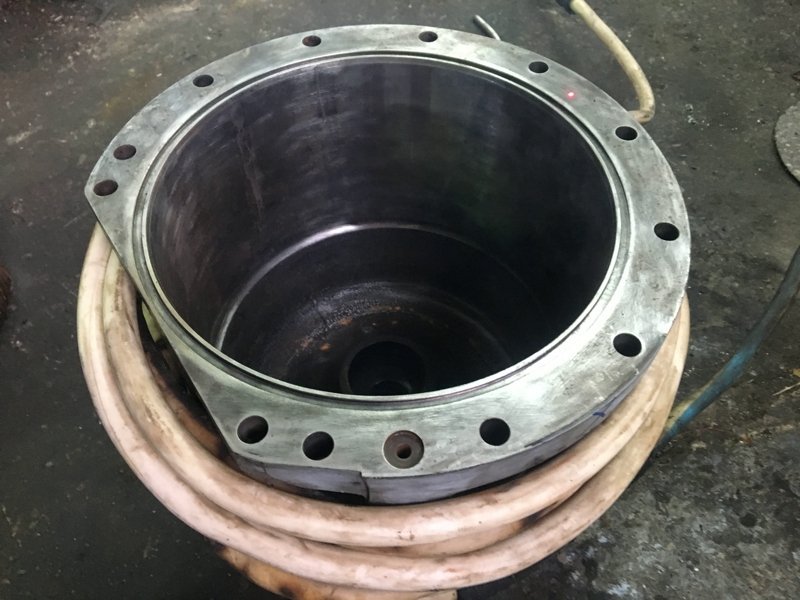

Rewinding of the Motor Stator Windings:
- The stator windings were rewound to restore their insulation and electrical performance.
- High-grade materials were used, meeting the original manufacturer’s specifications.
-

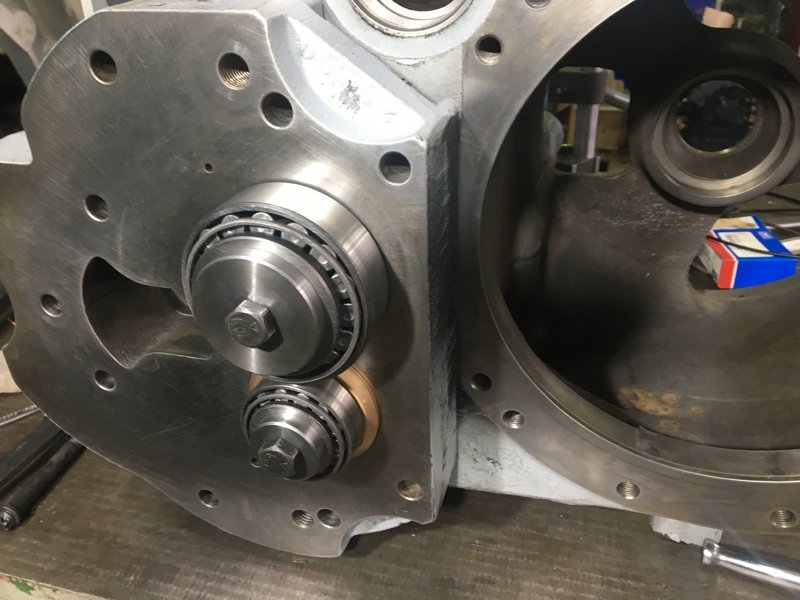

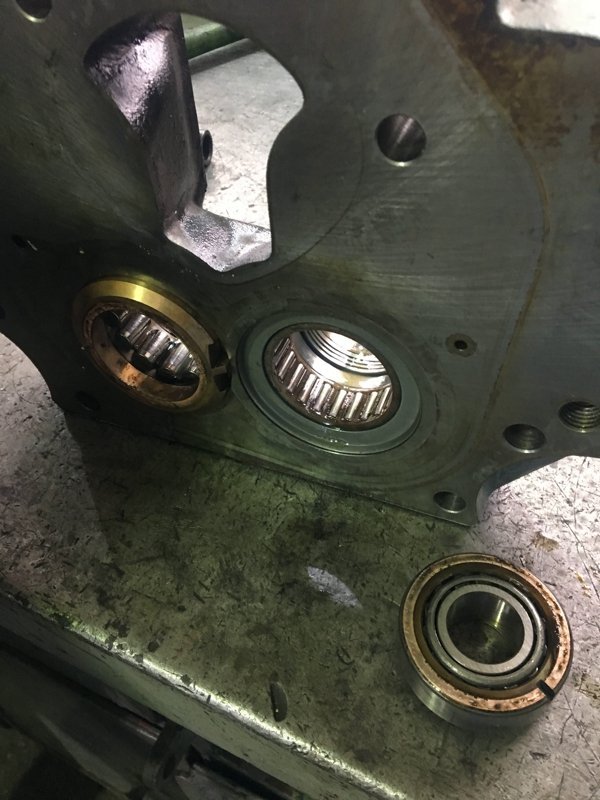

Replacement of Bearings and Clearance Adjustment:
- All bearings were replaced with new ones matching OEM specifications.

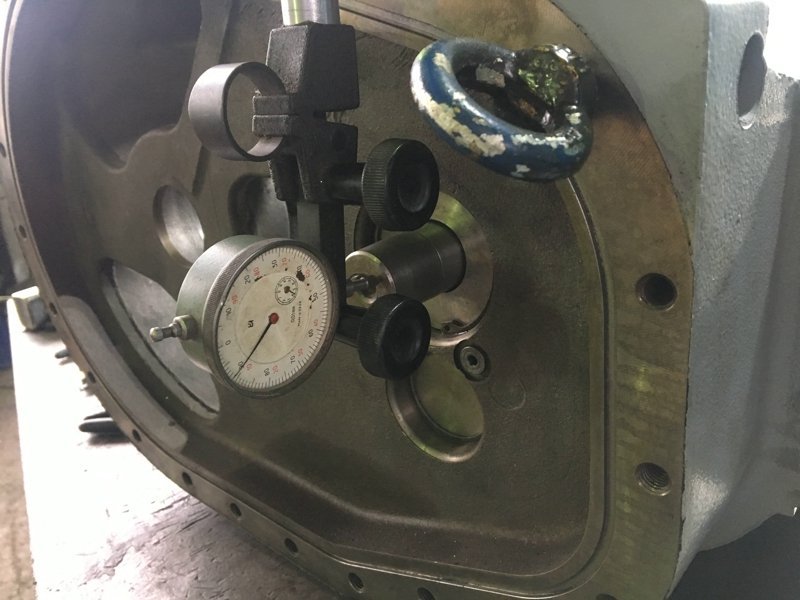

- Clearances were precisely adjusted to ensure optimal compressor performance.
-
Restoration of Rotors and Pressure Flange:
- Scoring on the rotors was removed, restoring them to original condition.
- The pressure flange was also restored to ensure proper sealing and efficient operation.
-

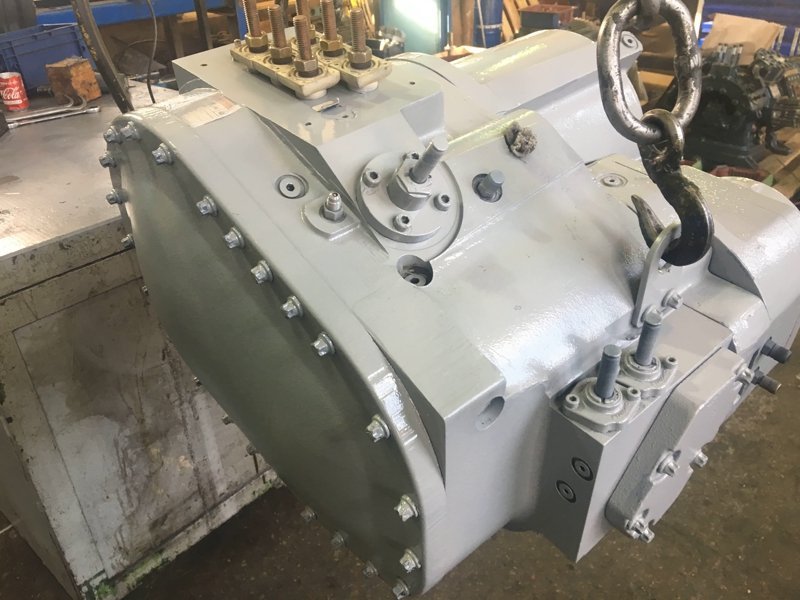

Complete Assembly and Electrical Testing:
- The compressor was reassembled using new seals and sealing materials.
- Electrical tests were performed to confirm the functionality of the motor and entire compressor system.
- All operating parameters met factory specifications.
Result

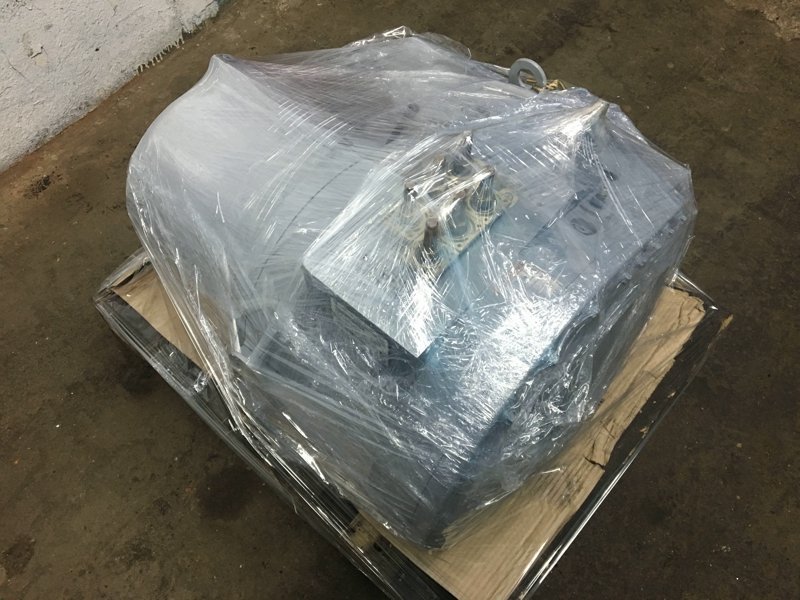

After completing all repair procedures and tests, the Carrier Carlyle 06NA chiller compressor was successfully restored and is now ready for operation. Testing confirmed that the unit runs efficiently, reliably, and meets all technical requirements.
Conclusion
The repair of the Carrier chiller compressor, model Carlyle 06NA, included a comprehensive diagnostic, ultrasonic cleaning, motor stator rewinding, bearing replacement, rotor and pressure flange restoration, and final testing. By using high-quality materials and adhering strictly to all technical procedures, the compressor was restored to like-new condition, ensuring reliable performance and a long service life within the cooling system.
