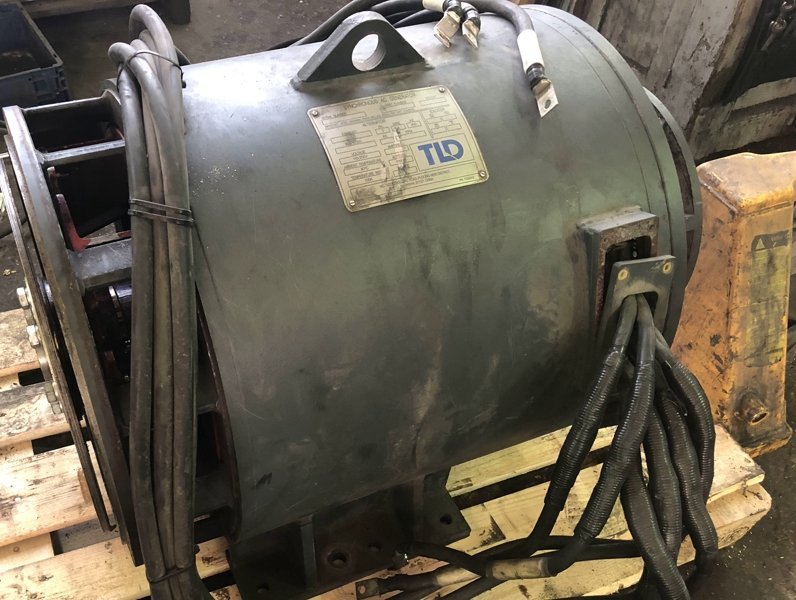

Repair of TLD GPU-4180 180 kVA 400 Hz

Introduction

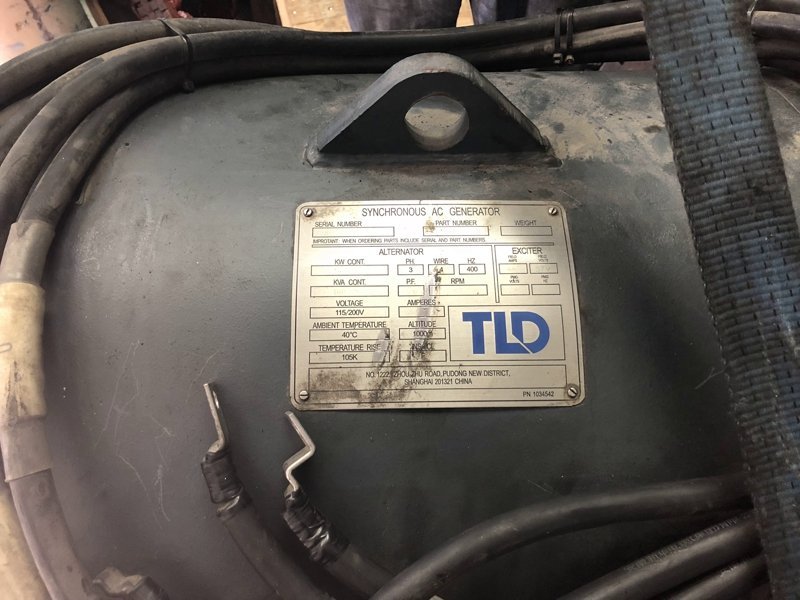

The TLD GPU-4180 ground power unit is a critical component in aircraft ground handling, providing stable electrical power during engine start-up and maintenance operations. With a capacity of 180 kVA and operating at 400 Hz, it meets the stringent standards of the aviation industry. This report outlines the repair process of this power unit, focusing on the rotor rewinding and balancing.

Problem Overview

A TLD GPU-4180 power unit was brought to our workshop due to unstable performance and frequent shutdowns. Initial diagnostics revealed several issues, including worn components, control system malfunctions, and a short circuit in the rotor.

Repair Process

1. Diagnostics and Inspection:

   • A full inspection of the unit’s main systems was performed.
   • Problems were identified in the cooling system.

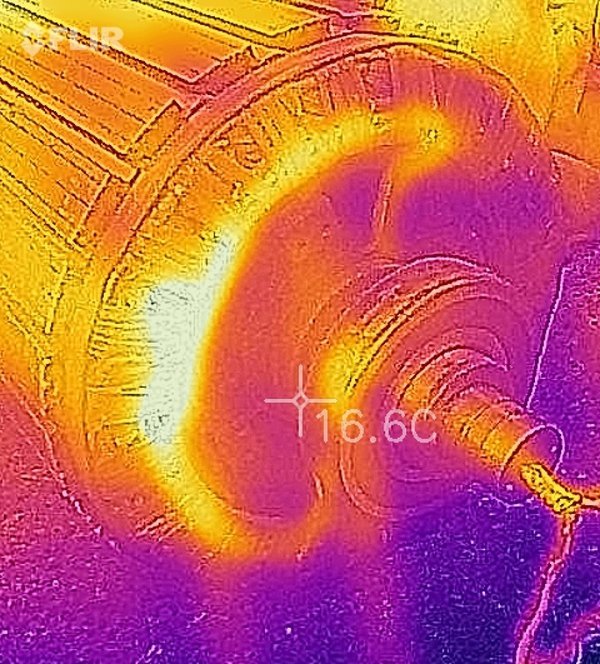

   • The rotor inspection revealed a short circuit, requiring rewinding and dynamic balancing.
   • The bearings were heavily worn and needed replacement.

2. Disassembly and Component Replacement:

   • The unit was completely disassembled to access and replace all faulty parts.
   • The cooling system was cleaned and upgraded to improve thermal performance.

3. Rotor Rewinding and Balancing:

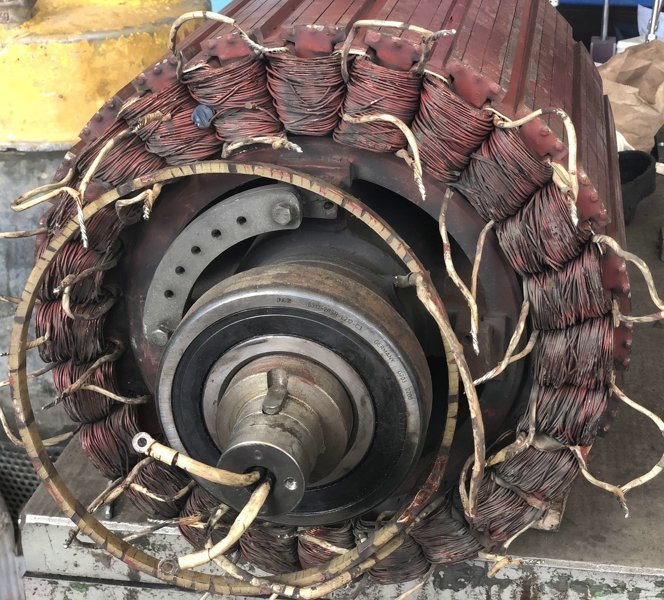

   • The rotor was carefully removed and inspected for damage.

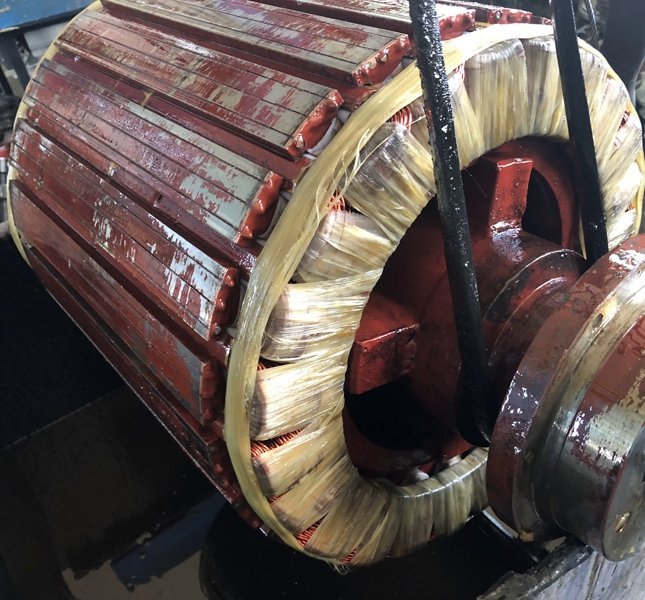

   • It was rewound using high-quality materials to eliminate the short circuit.
   • After rewinding, the rotor was dynamically balanced to ensure smooth and efficient operation.

4. Bearing Replacement:

   • The worn bearings were replaced with new ones that meet industry quality standards.

5. Control System Repair:

   • The control system was tested and recalibrated to ensure stable operation.
   • Software updates were performed, and damaged electronic components were replaced.

6. Comprehensive Testing:

   • After all repair work was completed, the unit underwent extensive performance testing.
   • Tests included output voltage and frequency stability under various loads, and cooling system efficiency under continuous operation.

Result

Following the repairs and testing, the TLD GPU-4180 aircraft ground power unit was fully restored and is now operational. The unit demonstrated stable performance under all test conditions, confirming the quality and effectiveness of the repair work.

Conclusion

The repair of the TLD GPU-4180 aircraft power unit (180 kVA, 400 Hz) included rotor rewinding and balancing, which resolved the short circuit and restored the device’s functionality. Thanks to a detailed diagnostic process, replacement of worn components and bearings, and upgrades to the cooling system, the unit is now fully capable of providing reliable and stable power for aircraft on the ground—a key factor for safety and efficiency in aviation ground handling operations.
