Rewinding the electromagnetic coil of a brake

Introduction

Electromagnetic brakes play a vital role in various industrial and transportation applications by ensuring reliable braking and holding of mechanical systems. Rewinding the electromagnetic coil is a key process to restore the brake’s functionality after wear or damage. This article outlines the rewinding process of an electromagnetic brake coil, as shown in the provided photo.

Issue

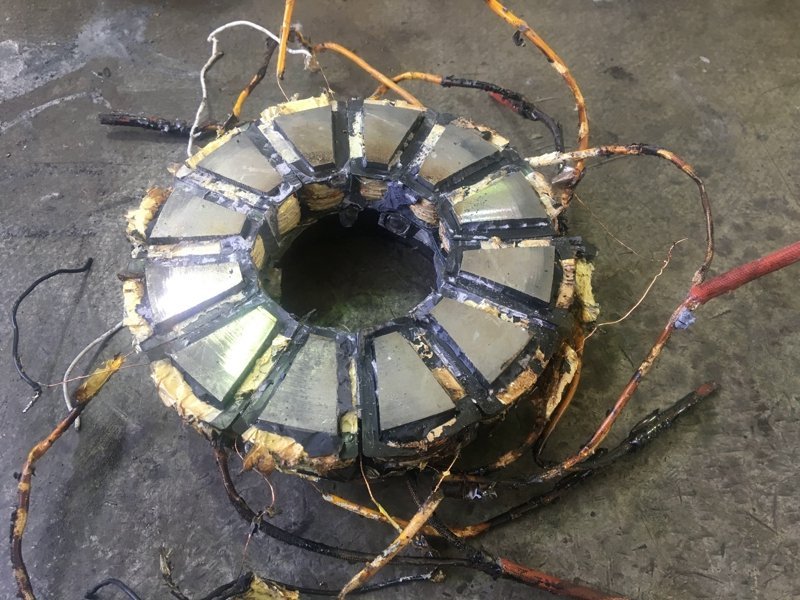

The electromagnetic coil of the brake, depicted in the photo, required rewinding due to insulation wear or wire damage. These issues can lead to reduced braking performance or complete brake failure. Rewinding the coil helps restore its original properties and extends the device’s service life.

Rewinding Process

1. Disassembly and Inspection:

   • The brake was disassembled to remove the electromagnetic coil.
   • A thorough inspection of the coil was performed to identify all damages.

2. Removal of Old Winding:

   • The old winding was carefully removed to avoid damaging the coil core.
   • The core surface was cleaned of any insulation remnants and dirt.

3. Material Preparation:

   • High-quality copper wire of the correct gauge and insulation was prepared for the rewinding.
   • Necessary insulating materials for the inter-layer insulation were also prepared.

4. Coil Rewinding:

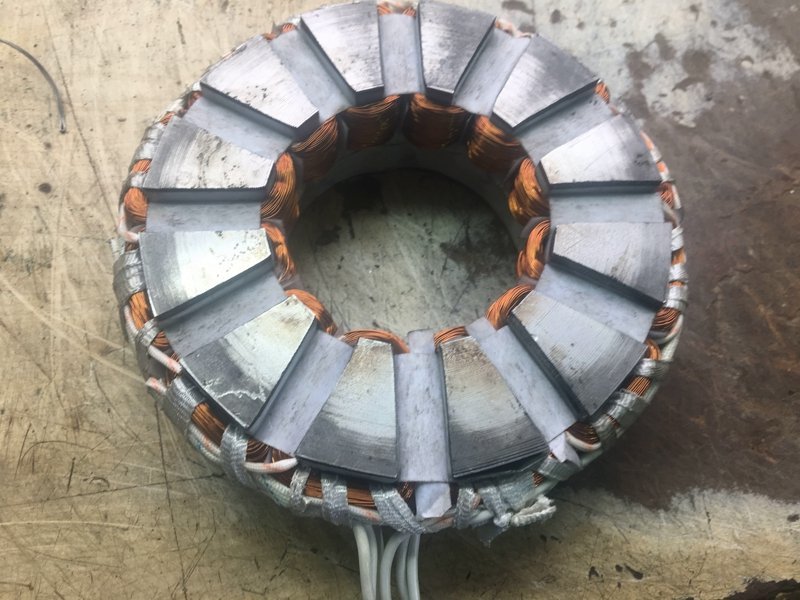

   • The rewinding process began with carefully winding the first layer of wire onto the core.
   • Each subsequent wire layer was wound evenly and tightly.
   • Insulating materials were inserted between wire layers to prevent short circuits.

5. Securing and Impregnation:

   • Once rewound, the wire ends were securely fastened to prevent unwinding.
   • The coil was impregnated with specialized insulating varnish to improve insulation and protect against external influences.

6. Assembly and Testing:

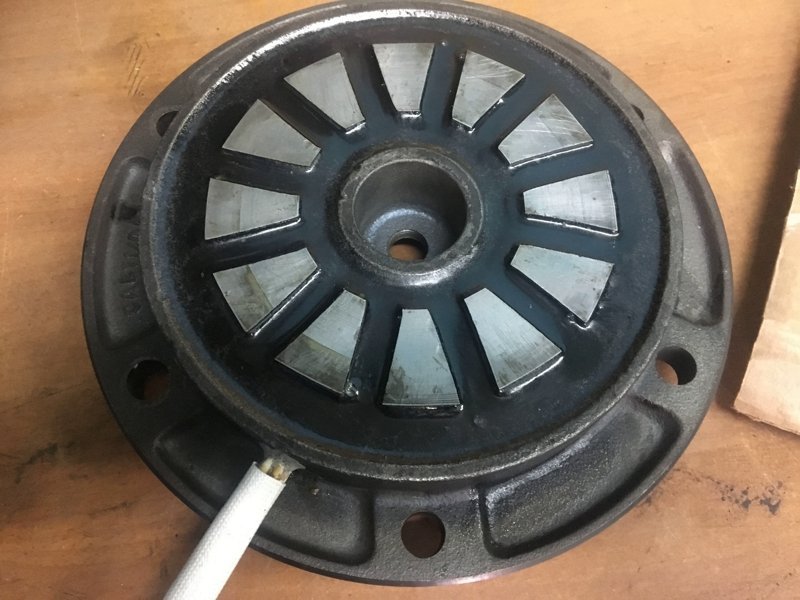

   • The rewound coil was reinstalled into the brake mechanism.
   • Electrical and mechanical tests were performed to verify the functionality of the coil and the entire brake system.

Result

After completing all rewinding work, the electromagnetic brake coil was successfully restored. Tests confirmed that the coil now provides the required braking force and reliability, validating the quality of the work and compliance with operational specifications.

Conclusion

Rewinding the electromagnetic coil of a brake is an essential process to restore its functionality and extend the device’s service life. Using high-quality materials and carefully following each step ensures a properly rewound coil, which guarantees reliable and efficient brake operation across a variety of applications.
